Description:

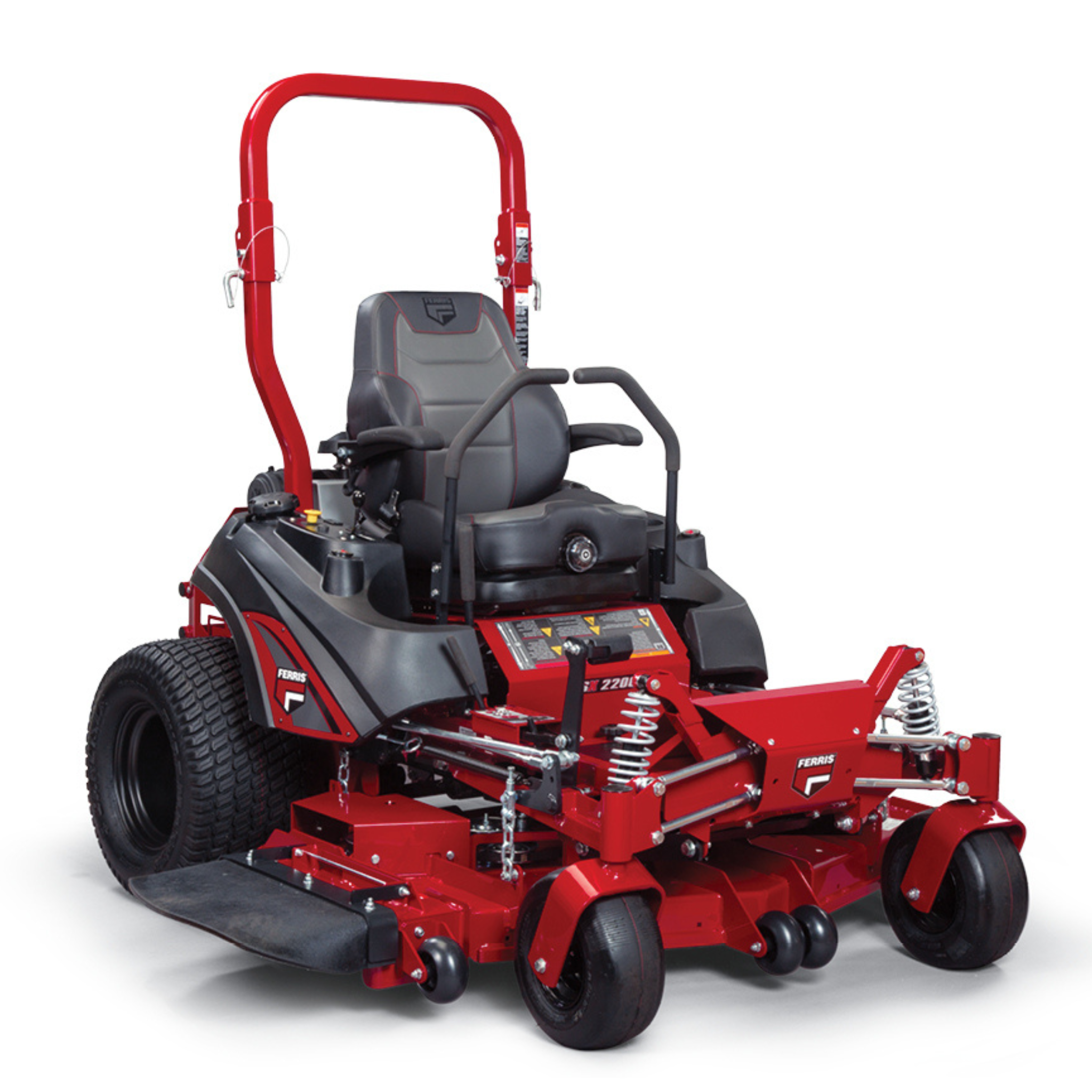

Take productivity and comfort up a notch. The ISX™ 2200 boasts our most advanced suspension technology – ForeFront™ Suspension, ensuring operator comfort. A redesigned 2-belt iCD™+ cutting system (select models) delivers unrivaled cut quality and the heavy-duty Hydro-Gear® ZT-4400™ Transaxle drive system provides power and durability to get the job done.

Features:

• iCD™+ Cutting System
• Redesigned for next-level performance, increased durability, and superior results. Available on select models.
• USB Port
• 12V-60V, USB Type A & C located on the dash panel for easy access and charging.
• ForeFront™ Suspension System
• Utilizes four upper and lower control rods and mower-specific shocks to ensure vertical caster bearing motion. Delivers a smoother ride, precise terrain tracing, and improved cut.
• Vanguard BIG BLOCK™ Engine
• EFI-ETC engine with Oil Guard, offering a 500-hour oil change interval and 28 hp*. Ideal for thick, dense, and wet conditions. Available on select models.
• Premium Suspension Seat
• Features high-back suspension seat with armrests, adjustable lumbar, back recline, and headrest (ISX3300 model).
• Hydro-Gear ZT-4400™ Transaxles
• Dual-commercial transaxles with 8.3" cooling fans to repel debris.
• Adjustable Cut Height
• Foot-operated deck lift with adjustable pedal, allowing cut height changes in 1/4" increments from 1.5" to 5".
• Ride-On Mower Warranties
• Coil-Over-Shocks and all suspension-related components covered for 5 years (60 months), unlimited hours. Committed to performance, productivity, and durability.

Specification:

Model Number: 5902078

Engine:

• Brand: Vanguard™ 810cc EFI with Oil Guard
• Power Rating: 28
• Displacement (cc): 810
• PTO: Electric
• Cylinders: 2
• Starter: Electric
• Fuel Type: Gasoline
• Fuel Tank Capacity (gal): 11
• Hour Meter/Instrumentation: Dual-function hour meter, fuel level gauge in each tank

Deck:

• Size (in): 60
• Cutting Height (in): 1.5 - 5
• Spindles: Cast-iron greaseable
• Deck Construction: iCD™+ Cutting System, 2-Belt
• Drive Axles (in): 1.375

Suspension:

• Suspension: ForeFront™ Suspension System

Transmission:

• Transmission: Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans

Tires:

• Caster Tires (in): 13 x 6.5-6
• Drive Tires (in): 24 x 12-12

Speed:

• Ground Speed-Fwd (mph): 0-10
• Ground Speed-Rev (mph): 0-5

Dimensions & Weight:

• Overall Length (in): 82.5
• Overall Width (in) Deflector Down/Deflector Up: 74 / 65
• Dry Weight (lbs): 1405

Seat Package:

• Seat Package: Premium high-back Suspension Seat with adjustable armrests, adjustable lumbar, and back recline.

Safety & Warranty:

• Certified Roll-over Protection System: 180° foldable
• Controls / Safety Group: Seat-activated engine kill, clutch safety switch, neutral, and parking brake safety circuit/adjustable twin steering controls
• Parking Brake / Safety Circuit: Hand-operated Internal transaxle brake
• Warranty (Engine): 3-Year limited manufacturer's warranty
• Warranty (Balance of Machine): 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over shocks and all suspension-related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.

Engine Configuration: Vanguard™

This comprehensive breakdown covers all the specifications and features of model number 5902078.
