Description:

The Cub Cadet® Ultima Series ZTX4 54 is a 54-inch zero-turn lawn mower with a 26 HP engine. It features an AeroForce™ Max reinforced fabricated deck, designed to provide a high-quality cut with few clumps and an even finish. The mower is made with 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. With dual hydrostatic transmissions, it offers quick ground speeds, giving your yard a professional look.

Features:

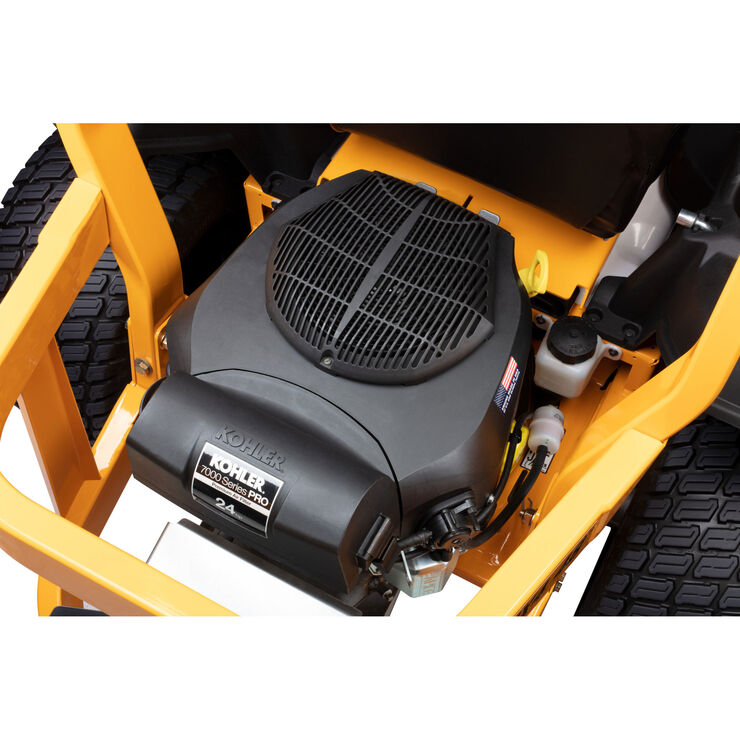

• 26 HP* 747cc Kohler® KT-Pro 7000 series V-twin OHV engine built for reliable starting and a quiet operation
• Dual hydrostatic transmissions allow for 8 MPH forward (3.5 MPH reverse) ground speeds
• A high-strength, continuous 1.5 in. x 3 in. tubular steel frame with fully e-coat lower frame and corrosion defense system, a multi-step process that electronically applies corrosion resistance with meticulous care to help protect against wear and tear
• 54 in. AeroForce™ Max 10-Gauge reinforced fabricated steel cutting deck with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design that is designed to provides flawless results, mows a wide area of grass to help reduce cutting time, and helps provide your lawn with a clean, premium cut

Specifications:

Engine

• Brand: Kohler®
• Model: Pro 7000 Series (KT745)
• Displacement: 747cc
• Power Output: 26 HP
• Starter: Electric
• Fuel Tank Capacity: 5.5 gal (20.82 L)
• Cylinders: Twin
• Oil Capacity: 2.0 qt (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Choke: Separate
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor
• Governor: Mechanical

Battery

• Type: AGM
• Voltage: 12V
• CCA: 210

Drive System

• Transmission: Hydro-Gear ZT 3100
• Drive Type: Hydrostatic
• Forward Speed: Up to 8 MPH (12.9 km/h)
• Reverse Speed: Up to 3.5 MPH (5.6 km/h)

Cutting Deck

• Width: 54 in
• Material: 10-gauge steel + 2-gauge reinforcement
• Construction: Reinforced Fabricated
• Blades: 3
• Engagement: Electric PTO
• Deck Lift: Foot pedal + Dial adjust
• Cutting Height Range: 1" – 4.75"
• Height Positions: 17
• Anti-Scalp Wheels: 3

Chassis & Features

• Frame: 1.5" x 3" tubular steel
• Turning Radius: 0° (Zero Turn)
• ROPS (Roll-Over Protection): Yes
• Tow Hitch: Yes
• Brakes: Disc
• Corrosion Protection: Yes

Controls & Comfort

• Steering: Lap Bars

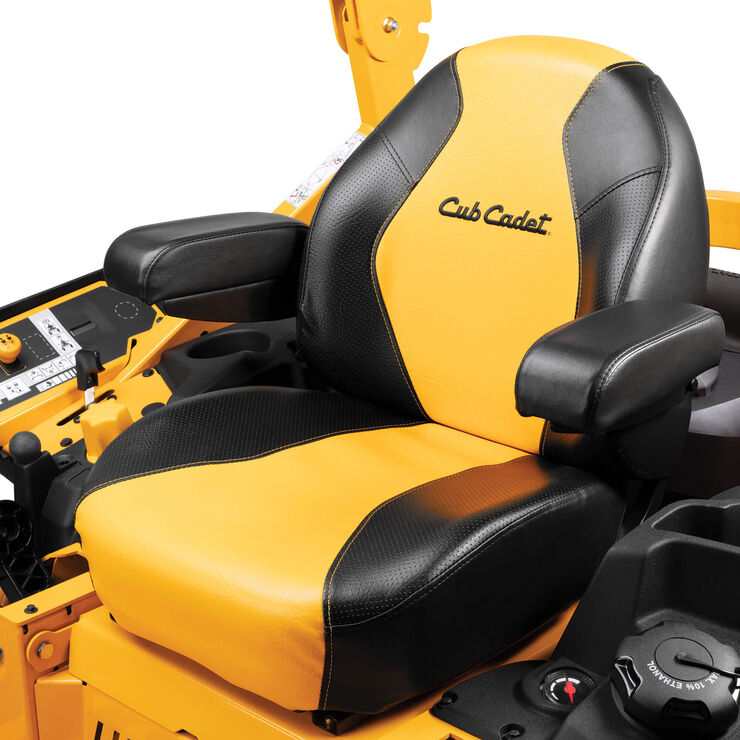

• Seat: 20" High-back with Armrests
• Seat Adjustment: Lever
• Cruise Control: No
• Hour Meter: Yes
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Integrated in Lap Bars
• Headlights: Dual-LED

Tires

• Rear Tires: 22" x 12"-12"
• Front Tires: 13" x 6.5"-6"
• Tread: Turf Master / Multi Trac

Other Info

• Series: Ultima Series™ ZTX
• Model Number: 47TSAAA7A10
• Mulch Kit: Sold separately

Warranty

• Residential: 4 years / 800 hours
• Commercial: 4 years / 800 hours
• Frame & Deck Shell: Lifetime limited
