Description:

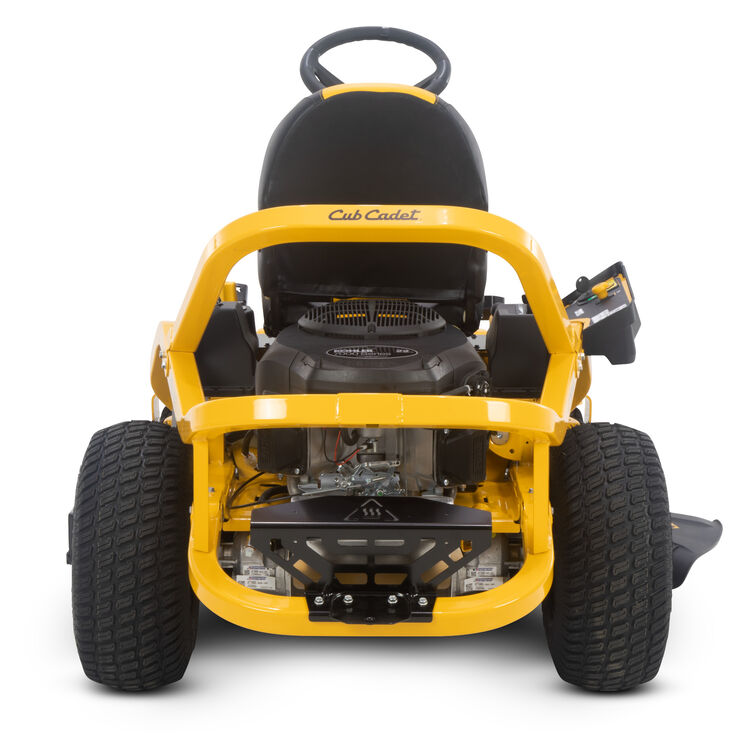

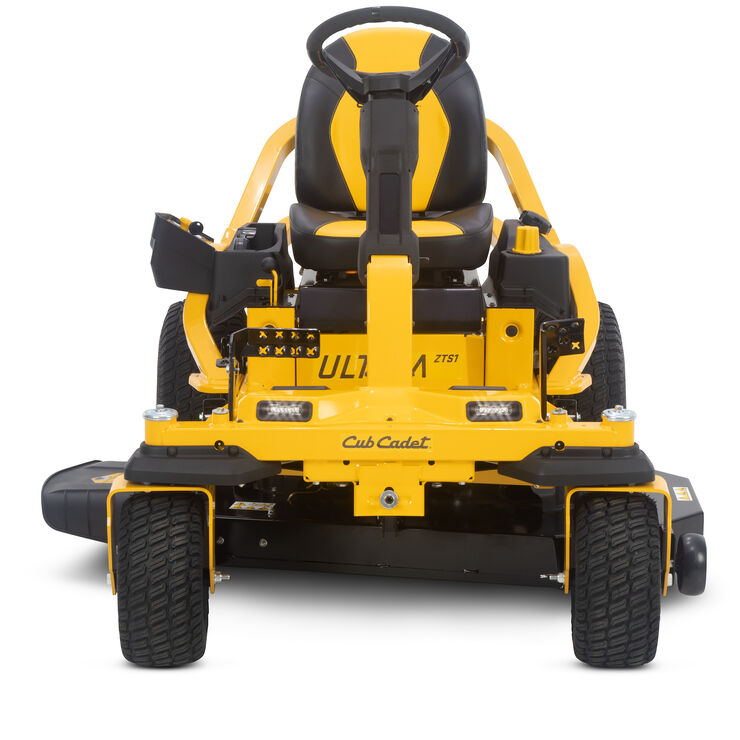

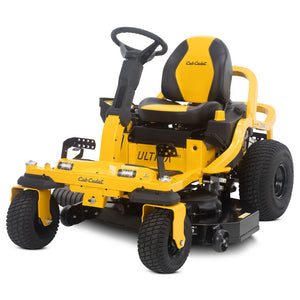

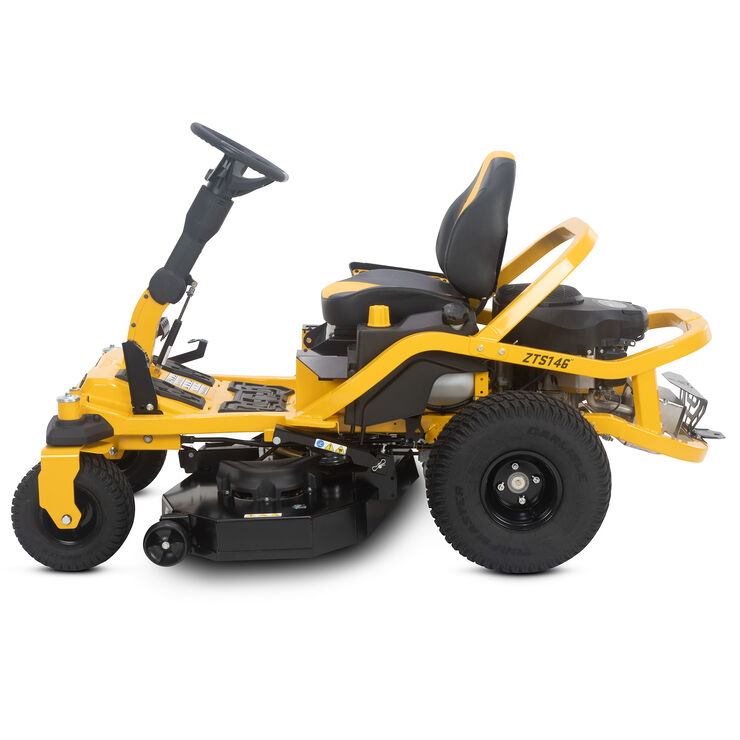

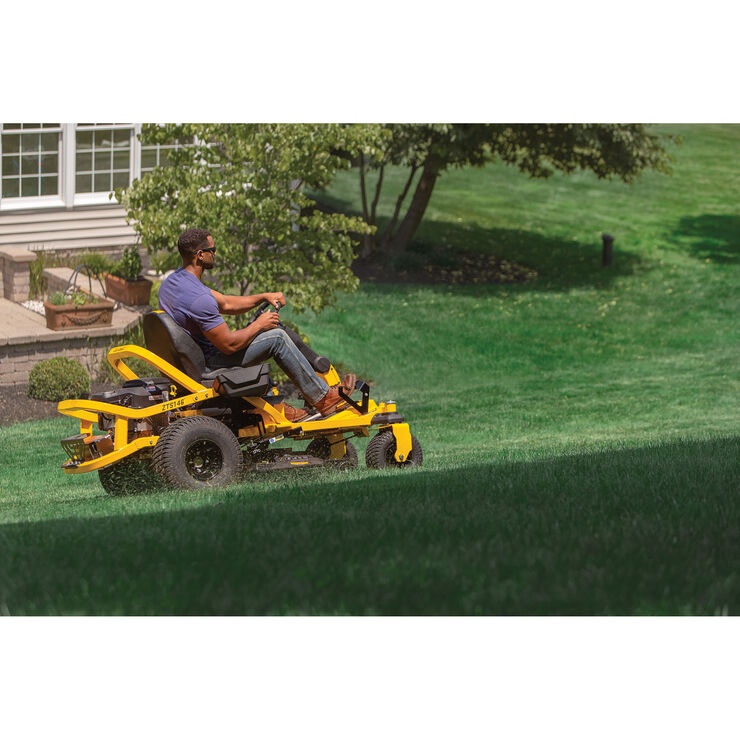

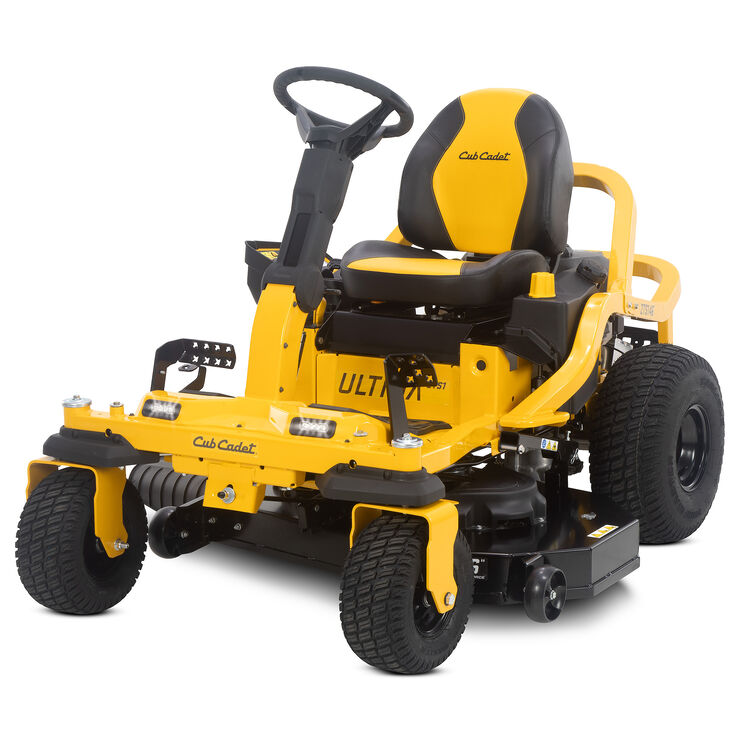

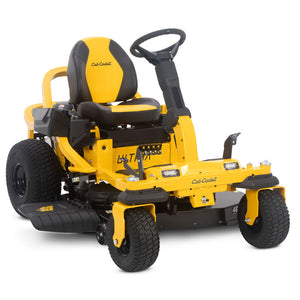

The Cub Cadet® Ultima Series ZTS1 46 is a 46-inch zero-turn lawn mower with a 22 HP engine, featuring an AeroForce™ fabricated deck and Synchro-Steer™ technology. It is designed to provide a high-quality cut with few clumps and an even finish. The Synchro-Steer™ technology offers 4-wheel control, which helps provide stability for straight-line mowing on hills and slopes up to 20 degrees. The mower has dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look.

Features:

• Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
• A 22 HP*/747cc Kohler 7000 series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
• 46-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.

Specifications:

Engine

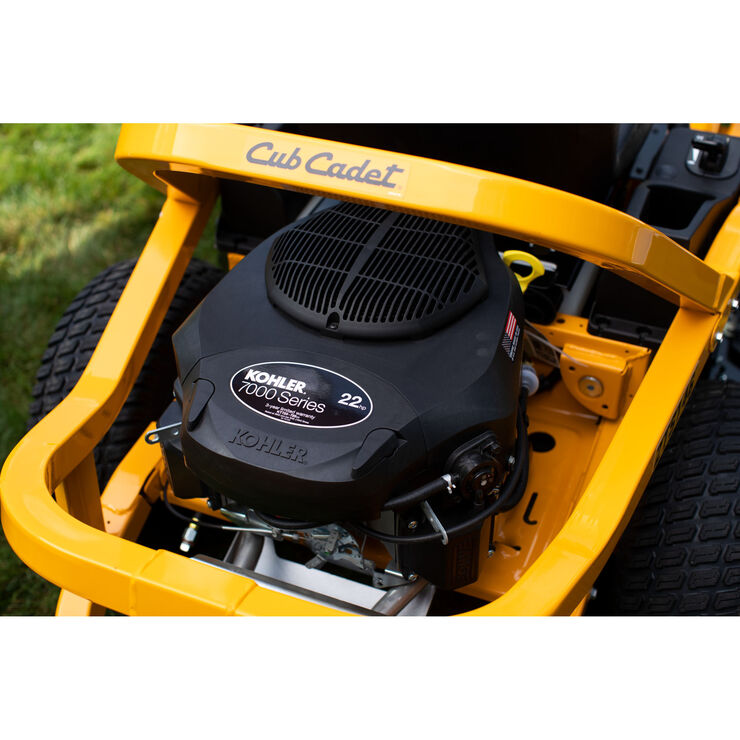

• Brand/Model: Kohler® 7000 Series KT722
• Displacement: 747cc
• Horsepower: 22 HP
• Start Type: Electric (Ignition Key)
• Fuel Capacity: 3.5 gal (13.25 L)
• Oil Capacity: 2.0 qt (1.89 L)
• Cylinders: Twin
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel System: Carburetor
• Choke: Separate
• Air Filter: Dual element
• Oil Filter: Yes
• Governor: Mechanical

Battery

• Type: AGM
• Voltage: 12V
• CCA: 210

Drive System

• Transmission: Hydro-Gear EZT 2200
• Type: Hydrostatic
• Forward Speed: 7 MPH (11.3 km/h)
• Reverse Speed: 3.5 MPH (5.6 km/h)

Cutting Deck

• Width: 46 in
• Blades: 2
• Material: 11-gauge fabricated steel
• Engagement (PTO): Electric
• Lift System: Foot pedal with dial adjust
• Cutting Height Range: 1" – 4.5"
• Deck Positions: 15
• Anti-Scalp Wheels: 2
• Deck Wash: No
• Mulch Kit: Available separately

Chassis & Controls

• Frame: 2" x 2" tubular steel
• Turning Radius: 0° (Zero Turn)
• ROPS: No
• Tow Hitch: Yes
• Brakes: Disc
• Steering: Steering Wheel
• Cruise Control: No

Comfort & Features

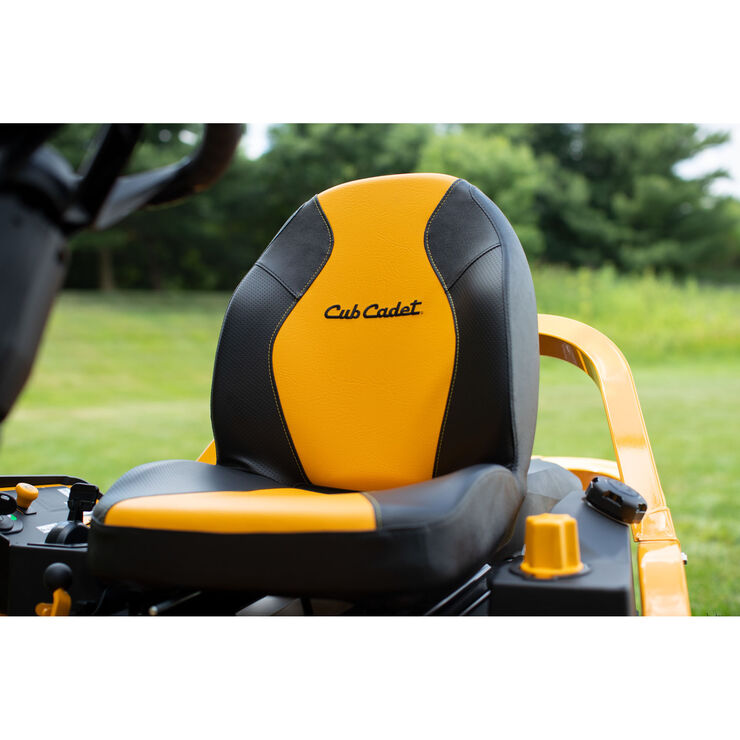

• Seat: 20" high back (lever adjustable, no armrests)
• Front Suspension: No
• Hour Meter: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Hand lever

Wheels

• Rear Tires: 20" x 8"-8"
• Front Tires: 13" x 6.5"-6"
• Tread: Turf Master / Multi Trac

Warranty

• Residential: 3-year unlimited hours
• Frame & Deck Shell: Lifetime limited
• Commercial Use: Not covered
